Produkt Beskrivelse

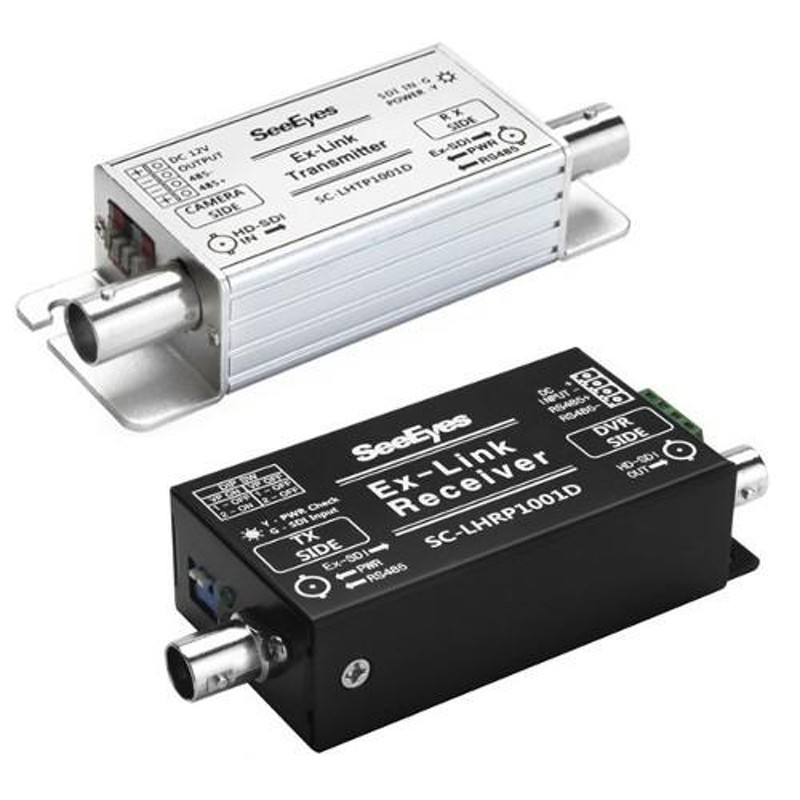

SC-LHCP1001D is a transmission device that sends & receives power to camera and EX-SDI(1.0) video signal by one coaxial cable and transmits RS-485 control data to camera. Also it is able to extend additional distance by using SC-HLR01D(repeater).
• HD-SDI transmission up to 400m over RG-6, 300m over RG-59 (Full HD: 1.5G)
– More than twice further transmission available with high-resolution digital system
• HD-SDI + Power + RS-485 over only one coaxial cable (Simplex)
• Power supply to HD-SDI camera (10W/DC12V)
• Self-diagnosis feature for safe power transmission
• Max. 400m additional distance extension available by using our repeater (SC-HLR01D, SC-HLR01DW))
• Cost-effective way & Easy installation (30~50% cost-saving)
• No need of high-priced optical or HDMI cables
• Supported resolution: 720p 24/25/30/50/60, 1080i 50/60, 1080p 24/25/30
